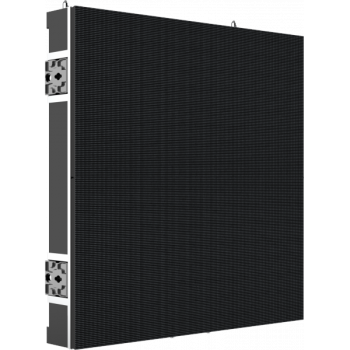

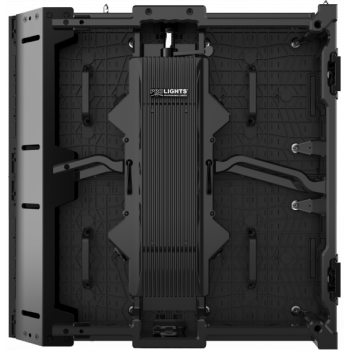

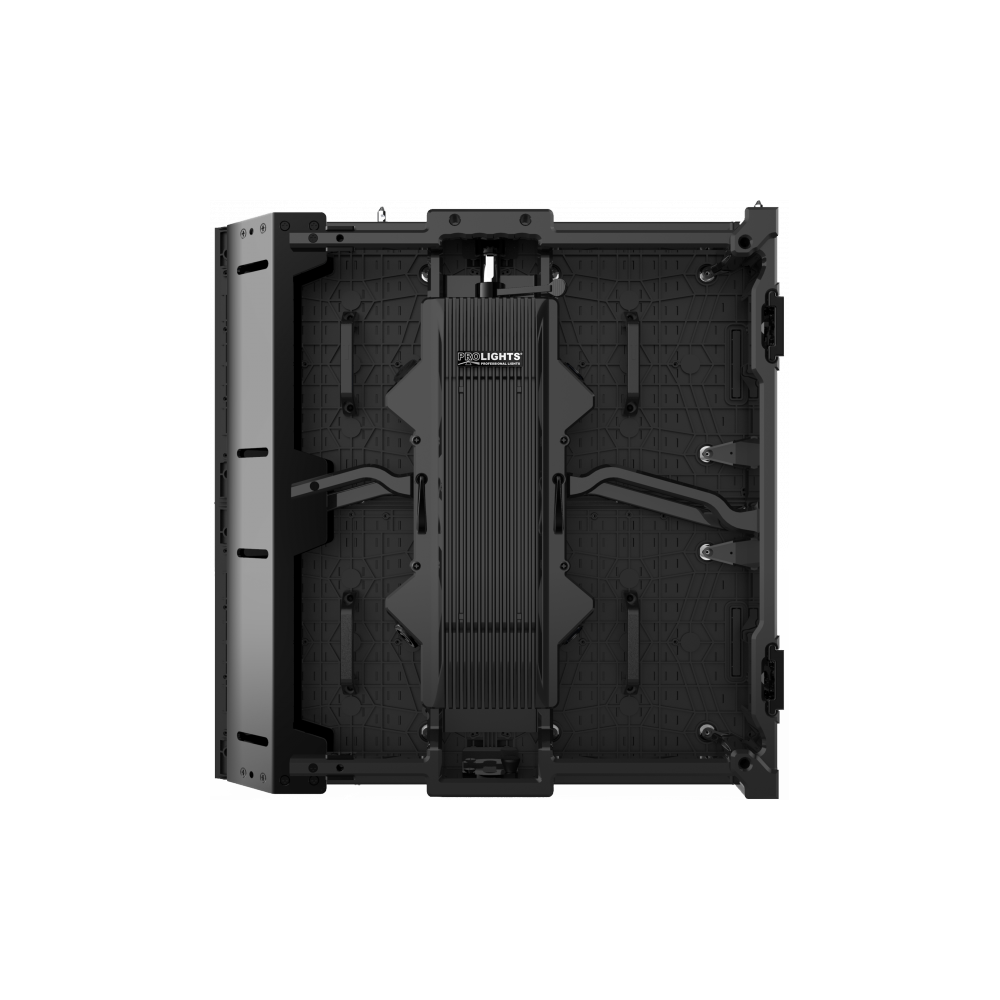

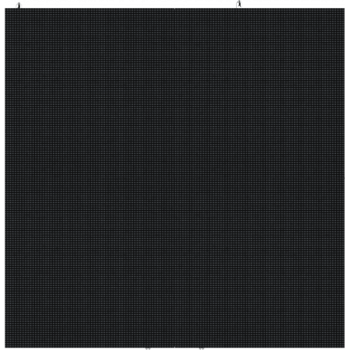

Cabinet de OMEGAX26B para realizar esquinas de máximo 90° , sin costuras a través de gabinetes de corte especial IZQUIERDO de 45°.
Funciones:
Configuraciones de curvas tanto cóncavas como convexas a través de placas de montaje curvas:
• 0-10° cóncavo (10° - 5° - 2°)
• 0-5° convexo (5° - 2°)
VIDEO
Driver chip type: MBI 5252
LED source: SMD 2121 full black
Pixel pitch: 2,6mm
Panel resolution: 192x192pixels
Module resolution: 96x96pixels
Luminous flux: 1.000nit
Contrast: 3.000:1
Grayscale: 18 bit
Refresh rate ≥: 3.840Hz
Drive Mode: 1/16 scan, constan current
Vertical viewing angle: 120°
Horizontal viewing angle: 120°
LED density: 147.456LED/sqm
Dead Pixel Ratio: <0.002
LED avg life span: 100.000
ELECTRICAL
Power input/output: Seetronic TRUE powerCON
Power supply: AC 110/230 V 50/60 Hz
Max power consumption (panel): 160W
Avg power consumption (panel): 53W
Max power consumption (sqm): 640W
Avg power consumption (sqm): 160W
Standby power consumption (pannello): 20W
Max rated current/panel:: AC 220 V / 0,55 A
Working temperature: -10°C / +45°C
Working humidity: 10~80 RH%
CONTROL
Receiving card type: A8S
Other controllers type: rotation, 18bit+, clearview, mapping, firmware copy, RCFGX restore, calibration restore
Control protocol: Novastar
Signal input: waterproof Seetronic RJ45
Signal output: waterproof Seetronic RJ45
MECHANICS
Other specifics: curve configurations, climbable, rear panel swapping, corner protection for transport, velcro strips for gapless mounting
Magnetic LED modules: available
Module size (WxH): 250x250mm
Panel size(WxHxD): 500m×500mm×90,6mm
Vertical hanging system: built-in aliscaf clamp support
Cooling: natural cooling of the peculiar chassis and to absence of fans
Connection: seamless locking system
Curvability: concave 2°, 5°, 10° - convex 2°, 5°
Body: die-cast aluminium housing
Color: black
IP rating: IP30 (front and rear)
Panel weight: 9kg
Weight per square meter: 36kg
Hanging Panel Quantity ≤: 20
Compliant Standard: CE, EMC, UL
