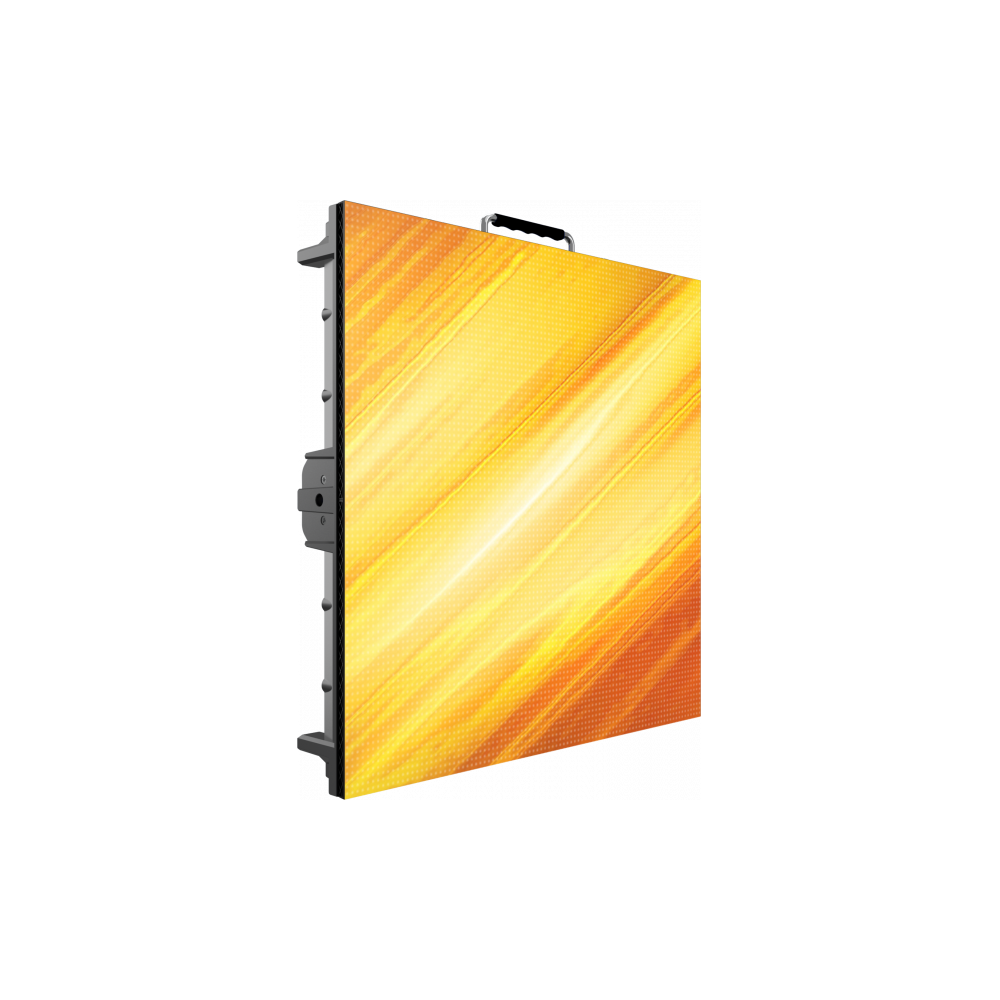

DeltaPix 29B es una pantalla LED de alquiler para uso en interiores con un paso de píxeles de 2,9 mm, diseñada para cumplir con los requisitos de las exigentes aplicaciones corporativas, de TV e instalación.
Los paneles DeltaPix 29B se pueden curvar hasta 10 ° cóncavos y admiten respaldo de energía automático en caso de fallas en la fuente de alimentación.
La parte electrónica incluye la última generación de tarjetas receptoras Novastar A5s y una frecuencia de refresco de hasta 3.840 Hz.
Funciones:
Curvable hasta 10° cóncavo por placas metálicas de alta precisión
Respaldo automático de energía
Frecuencia de refresco de 3.840 Hz
VIDEO
Driver chip type: ICN 2053
LED source: SMD 1515 full black
Pixel pitch: 2,97mm
Panel resolution: 168x168pixels
Module resolution: 84x84pixels
Luminous flux: 650nit
Contrast: 3.000:1
Grayscale: 14 bit
Refresh rate ≥: 3.840Hz
Drive Mode: 1/21 scan, constant current
Vertical viewing angle: 140°
Horizontal viewing angle: 120°
LED density: 112.896LED/sqm
Dead Pixel Ratio: <0,002
LED avg life span: 100.000
ELECTRICAL
Power input/output: IPKON Seetronic IN/OUT
Power supply: AC 110/230 V 50/60 Hz
Max power consumption (panel): 150W
Avg power consumption (panel): 50W
Max power consumption (sqm): 600W
Avg power consumption (sqm): 200W
Standby power consumption (pannello): 21W
Max rated current/panel:: AC 220 V / 0.55 A
Working temperature: -10°C / +45°C
Working humidity: 10~80 RH%
CONTROL
Receiving card type: A5S
Other controllers type: power backup connectors, mapping, firmware copy, RCFGX restore, calibration restore
Control protocol: Novastar
Signal input: RJ45
Signal output: RJ45
MECHANICS
Magnetic LED modules: available
Other specifics: curve configurations
Module size (WxH): 250x250mm

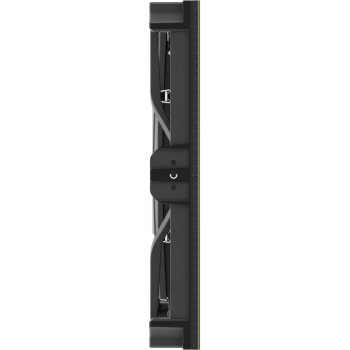

Panel size(WxHxD): 500×500×73mm
Vertical hanging system: built-in aliscaf clamp support
Cooling: natural cooling of the peculiar chassis and to absence of fans
Connection: seamless locking system
Curvability: concave 0° / +10°
Body: die-cast aluminium housing
Color: black
IP rating: IP30 (front and rear)
Panel weight: 7kg
Weight per square meter: 28kg
Hanging Panel Quantity ≤: 20 for hanging - ≤ 30 for grounding
Compliant Standard: CE, EMC, UL
