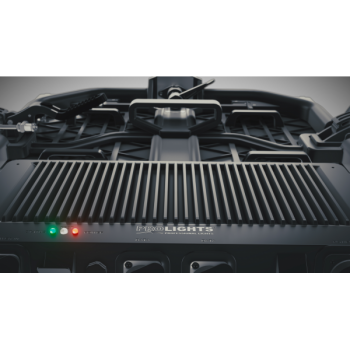

OmegaPix 48T es un revolucionario panel de alquiler de pantalla LED de 4,8 mm para exteriores. Especialmente diseñado para ofrecer funciones mecánicas avanzadas, configuraciones más creativas y una calidad de imagen de video mejorada.
Características mecánicas/de montaje:
Configuraciones curvas tanto cóncavas como convexas a través de placas de montaje curvas +15° / -15° a bordo

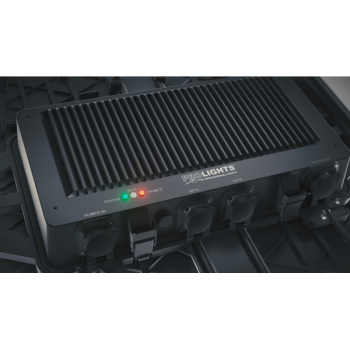

Intercambio en caliente del panel posterior para reemplazar la fuente de alimentación y la electrónica

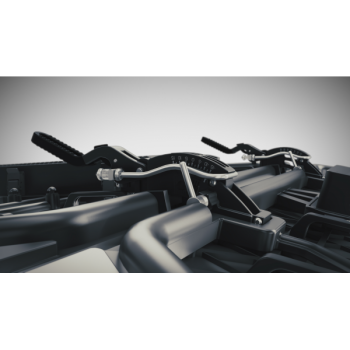

Conexiones de bloqueo rápido para el intercambio de TILES
Imanes de montaje asistido que permiten una configuración rápida de 1 hombre
Accesorios de apilamiento de suelo disponibles
Velcro en los bordes para evitar huecos
VIDEO
Driver chip type: MBI 5252
LED source: Kinglight SMD2525
Pixel pitch: 4,8mm
Panel resolution: 104x208pixels
Module resolution: 52x104pixels
Luminous flux: 4.000nit
Contrast: 3.000:1
Grayscale: 18 bit
Refresh rate ≥: 2.880Hz
Drive Mode: 1/13 scan, constant current
Vertical viewing angle: 120°
Horizontal viewing angle: 140°
LED density: 43.264LED/sqm
Dead Pixel Ratio: <0,002
LED avg life span: 100.000
ELECTRICAL
Power input/output: IPKON Seetronic IN/OUT
Power supply: AC 110/230 V 50/60 Hz
Max power consumption (panel): 400W
Avg power consumption (panel): 133W
Max power consumption (sqm): 800W
Avg power consumption (sqm): 266W
Standby power consumption (pannello): 35W
Max rated current/panel:: AC 220 V / 1,6 A
Working temperature: -20°C / +50°C
Working humidity: 10~90 RH%
CONTROL
Receiving card type: A8S
Other controllers type: rotation, 18bit+, clearview, mapping, firmware copy, RCFGX restore, calibration restore
Control protocol: Novastar
Signal input: IP data Seetronic IN
Signal output: IP data Seetronic OUT
MECHANICS
Other specifics: curve configurations, rear panel swapping, velcro strips for gapless mounting
Magnetic LED modules: not magnetic, removible by joint
Module size (WxH): 250x500mm

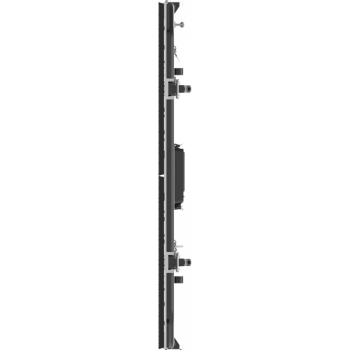

Panel size(WxHxD): 500x1.000x76mm
Vertical hanging system: built-in aliscaf clamp support
Cooling: natural cooling of the peculiar chassis and to absence of fans
Connection: seamless locking system

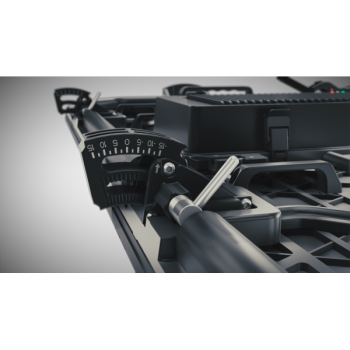

Curvability: mechanics on board, -15° to +15°, can be adjusted by the unit of 2.5°
Body: die-cast aluminium housing
Color: black
IP rating: IP65 (front and rear)
Panel weight: 12kg
Weight per square meter: 24kg
Hanging Panel Quantity ≤: 10
Compliant Standard: CE, EMC, UL
